MN101EF34D Datasheet - Panasonic

MN101EF34D - Microcontroller

MN101E34 Series Type Internal ROM type ROM (byte) RAM (byte) Package (Lead-free) Minimum Instruction Execution Time MN101EF34D FLASH 64K+4K 4K TQFP048-P-0707B 0.042 µs (at 2.2 V to 5.5 V, 24 MHz) 62.5 µs (at 2.2 V to 5.5 V, 32 kHz) Interrupts RESET.

Watchdog.

External 0 to 4.

External 5 (key interrupt dedicated).

External 6.

Timer 0 to 4.

Timer 6.

Timer 7 (2 systems).

Timer 8 (2 systems).

Timer 9 (2 systems).

Time base.

Serial 1 (2 systems).

Serial 2 (2 systems).

Serial 4 (2 systems).

A

MN101EF34D-Panasonic.pdf

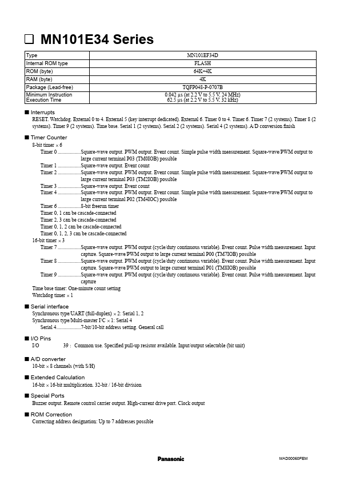

Preview of MN101EF34D PDF
MN101EF34D Datasheet Preview Page 2 MN101EF34D Datasheet Preview Page 3

Datasheet Details

Part number:

MN101EF34D

Manufacturer:

Panasonic

File Size:

303.31 KB

Description:

Microcontroller.
