SA-HT540E Datasheet - Panasonic

SA-HT540E DVD Home Theater Sound System SERVICE MANUAL

ORDER NO.MD0603061C2 DVD Home Theater Sound System SA-HT540E SA-HT540EB SA-HT540EG Colour (S)Silver Type Specifications lGeneral Power Source: E/ EG areas: AC 230V, 50Hz EB area: AC 230V-240V, 50Hz Power consumption: 115 W Dimensions (W×H×D): 430×60×354 mm Mass: 3.35kg lAmplifier section RMS Output Power: Dolby Digital Mode lTotal RMS Dolby Digital mode Power: 850 W At 1kHz and total harmonic of 10% lFront: 110 W/ Channel (3Ω) lCenter: 225 W/ Channel (6Ω) lSurround: 90 W.

SA-HT540E Datasheet (4.95 MB)

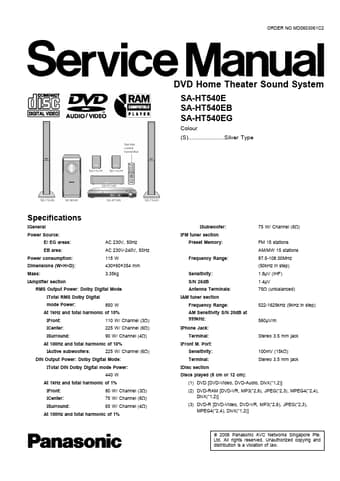

Preview of SA-HT540E PDF
SA-HT540E Datasheet Preview Page 2 SA-HT540E Datasheet Preview Page 3

Datasheet Details

Part number:

SA-HT540E

Manufacturer:

Panasonic

File Size:

4.95 MB

Description:

Dvd home theater sound system service manual.
