SFY3-DC18V, SFY2-DC5V Relay

SFY3-DC18V Description

SF-Y COMPACT RELAY FAMILY WITH FORCIBLY GUIDED CONTACTS SF-Y RELAY TYPICAL APPLICATIONS * Emergency stop switches * Machine safety en.

SFY3-DC18V Features

* 31.0 1.22
* Relay complies with EN 50205, Type A
* Small PC board area
* Different contact configurations: Type 2a2b, 3a1b 4a2b, 5a1b l x b x h (mm) 31.0 x 28.6 x 14.5 39.0 x 28.6 x 14.5 28.6 1.126 14.5 0.571 39.0 1.535
* Low profile: 14.5mm
* Insulation ac

SFY3-DC18V Applications

* Emergency stop switches
* Machine safety engineering
* Safety control units
* Automation technology
* Elevators
* Cable cars
* Escalators
* Process technology
* Railway and signal technology
* Medical technology

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SFY3-DC18V, SFY2-DC5V. Please refer to the document for exact specifications by model.

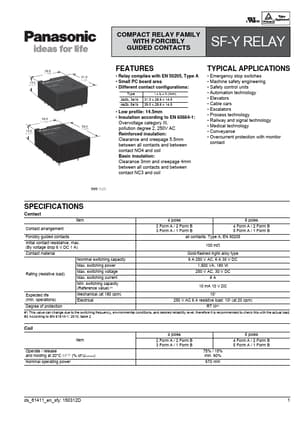

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SFY3-DC18V, SFY2-DC5V
Manufacturer
Panasonic
File Size
1.51 MB
Datasheet
SFY2-DC5V_Panasonic.pdf
Description
Relay
Note
This datasheet PDF includes multiple part numbers: SFY3-DC18V, SFY2-DC5V.
Please refer to the document for exact specifications by model.
