TN2-L-4.5V - SLIM POLARIZED RELAY

This page provides the datasheet information for the TN2-L-4.5V, a member of the TN2-3V SLIM POLARIZED RELAY family.

Datasheet Summary

Features

Small header area makes higher density mounting possible.
High sensitivity: 140 mW nominal operating power (single side stable 3-12 V type) mm inch.

Datasheet Details

Part number	TN2-L-4.5V
Manufacturer	Panasonic
File Size	95.96 KB
Description	SLIM POLARIZED RELAY
Datasheet	TN2-L-4.5V Datasheet
Additional preview pages of the TN2-L-4.5V datasheet.

📁 Similar Datasheet

TN2-L-H-12V - SLIM POLARIZED RELAY (Matsushita Electric Works(Nais))

TN2-L-H-24V - SLIM POLARIZED RELAY (Matsushita Electric Works(Nais))

TN2-L-H-3V - SLIM POLARIZED RELAY (Matsushita Electric Works(Nais))

TN2-L-H-48V - SLIM POLARIZED RELAY (Matsushita Electric Works(Nais))

Full PDF Text Transcription

Click to expand full text

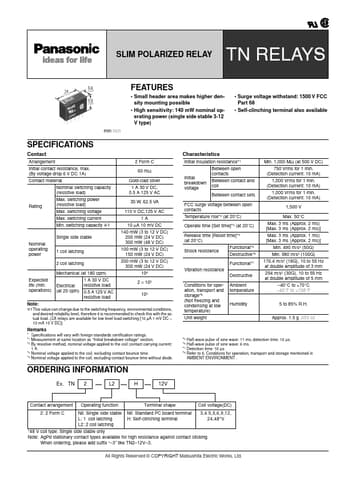

SLIM POLARIZED RELAY TN RELAYS • Surge voltage withstand: 1500 V FCC Part 68 • Self-clinching terminal also available 14 .551 5.6 .220 9.8 .386 FEATURES • Small header area makes higher density mounting possible • High sensitivity: 140 mW nominal operating power (single side stable 3-12 V type) mm inch SPECIFICATIONS Contact Arrangement Initial contact resistance, max. (By voltage drop 6 V DC 1A) Contact material Nominal switching capacity (resistive load) Max. switching power (resistive load) Rating Max. switching voltage Max. switching current Min. switching capacity ❇1 Single side stable Nominal operating power 1 coil latching 2 coil latching Mechanical (at 180 cpm) 1 A 30 V DC resistive load Electrical (at 20 cpm) 0.
