TQ2SA-L-4.5V, TQ2SA-1.5V - SMD RELAYS

Panasonic

The TQ2SA-L-4.5V by Panasonic is a SMD RELAYS. Below is the official datasheet preview.

📥 Download Datasheet

TQ2SA-L-4.5V SMD RELAYS by Panasonic - Datasheet Preview — Official preview page of the TQ2SA-L-4.5V SMD RELAYS datasheet (Panasonic).

Datasheet Details

Part number	TQ2SA-L-4.5V, TQ2SA-1.5V
Manufacturer	Panasonic
File Size	129.37 KB
Description	SMD RELAYS
Datasheet	TQ2SA-1.5V-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: TQ2SA-L-4.5V, TQ2SA-1.5V. Please refer to the document for exact specifications by model.

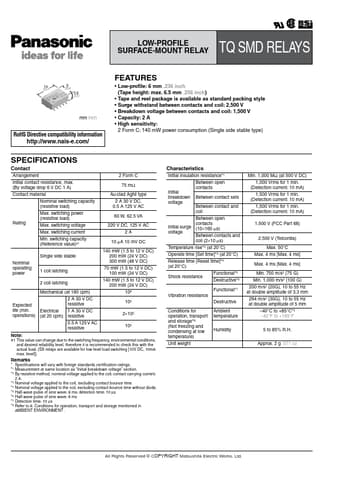

Additional preview pages of the TQ2SA-L-4.5V datasheet.

TQ2SA-L-4.5V Product details

Features

Low-proﬁle: 6 mm .236 inch (Tape height: max. 6.5 mm .256 inch).
Tape and reel package is available as standard packing style.
Surge withstand between contacts and coil: 2,500 V.
Breakdown voltage between contacts and coil: 1,500 V.
Capacity: 2 A.
High sensitivity: 2 Form C; 140 mW power consumption (Single side stable type).
