TQ2SL-9V, TQ2SA-1.5V Datasheet - Panasonic

TQ2SL-9V, TQ2SA-1.5V, SMD RELAYS

TQ SMD TESTING LOW-PROFILE TQ SMD RELAYSSURFACE-MOUNT RELAY 14 .551 9 .354 5.6 .220 mm inch RoHS Directive compatibility information http://www.na.

TQ2SA-1.5V-Panasonic.pdf

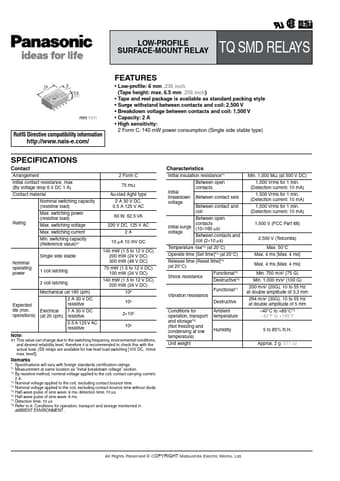

TQ2SL-9V Datasheet Preview — This datasheet PDF includes multiple part numbers: TQ2SL-9V, TQ2SA-1.5V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TQ2SL-9V, TQ2SA-1.5V

Manufacturer:

Panasonic

File Size:

129.37 KB

Description:

SMD RELAYS

Note:

This datasheet PDF includes multiple part numbers: TQ2SL-9V, TQ2SA-1.5V.
Please refer to the document for exact specifications by model.

Features

* Low-proﬁle: 6 mm .236 inch (Tape height: max. 6.5 mm .256 inch)
* Tape and reel package is available as standard packing style
* Surge withstand between contacts and coil: 2,500 V
* Breakdown voltage between contacts and coil: 1,500 V
* Capacity: 2 A
