TX2-12V, TX2-3V Datasheet - Panasonic

TX2-12V - TX RELAYS

TX Best seller with broad lineup and AC 2000 V breakdown voltage.

3.

Nominal operating power: High sensitivity of 140mW By using the highly efficient polar magnetic circuit “seesaw balance mechanism”, a nominal operating power of 140 mW (minimum operating power of 79 mW) has been achieved.

4.

High contact capacity: 2 A 30 V DC 5.

Compact size 15.0(L)  7.4(W)  8.2(H) .

591(L)  .291(W)  .323(H) 6.

The use of gold-clad twin crossbar contacts ensures high contact reliability.

We also offer

TX2-12V Features

* 1. 2,000 V breakdown voltage between contact and coil The body block construction of the coil that is sealed at formation offers a high breakdown voltage of 2,000 V between contact and coil, and 1,000 V between open contacts. 2. Outstanding surge resistance Surge breakdown voltage between open conta

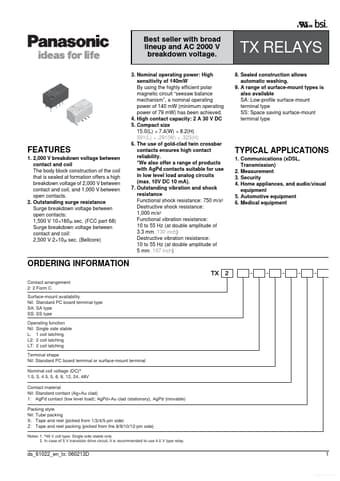

TX2-3V_Panasonic.pdf

This datasheet PDF includes multiple part numbers: TX2-12V, TX2-3V. Please refer to the document for exact specifications by model.
TX2-12V Datasheet Preview Page 2 TX2-12V Datasheet Preview Page 3

Datasheet Details

Part number:

TX2-12V, TX2-3V

Manufacturer:

Panasonic

File Size:

3.33 MB

Description:

Tx relays.

Note:

This datasheet PDF includes multiple part numbers: TX2-12V, TX2-3V.
Please refer to the document for exact specifications by model.
