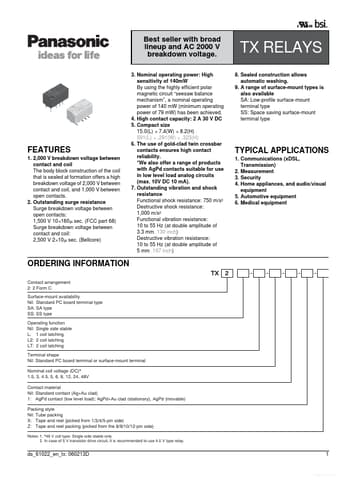

TX2-24V Datasheet - Panasonic

TX2-24V TX RELAYS

TX Best seller with broad lineup and AC 2000 V breakdown voltage. 3. Nominal operating power: High sensitivity of 140mW By using the highly efficient polar magnetic circuit “seesaw balance mechanism”, a nominal operating power of 140 mW (minimum operating power of 79 mW) has been achieved. 4. High contact capacity: 2 A 30 V DC 5. Compact size 15.0(L)  7.4(W)  8.2(H) . 591(L)  .291(W)  .323(H) 6. The use of gold-clad twin crossbar contacts ensures high contact reliability. We also offer .

TX2-24V Features

* 1. 2,000 V breakdown voltage between contact and coil The body block construction of the coil that is sealed at formation offers a high breakdown voltage of 2,000 V between contact and coil, and 1,000 V between open contacts. 2. Outstanding surge resistance Surge breakdown voltage between open conta
