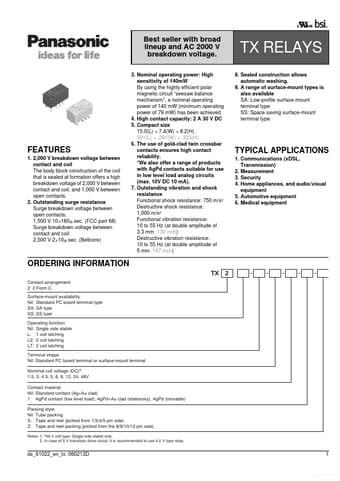

TX2-3V Datasheet | Panasonic

FEATURES 1. 2,000 V breakdown voltage between contact and coil The body block construction of the coil that is sealed at formation offers a high breakdown voltage of 2,000 V between contact and coil, and 1,000 V between open contacts. 2. Outstanding surge resistance Surge breakdown voltage between open contacts: 1,500 V 10160 sec. (FCC part 68) Surge breakdown voltage between contact and coil: 2,500 V 210 sec. (Bellcore) TYPICAL APPLICATIONS 1. munications (x DSL, Transmission) 2. Measurement 3. Security 4. Home appliances, and audio/visual equipment 5. Automotive equipment 6. Medical equipment ORDERING INFORMATION TX 2 Contact arrangement 2: 2 Form C Surface-mount availability Nil: Standard PC board terminal type SA: SA type SS: SS type Operating function Nil: Single side stable L: 1 coil latching L2: 2 coil latching LT: 2 coil latching Terminal shape Nil: Standard PC board terminal or surface-mount terminal Nominal coil voltage (DC)- 1.5, 3, 4.5, 5, 6, 9, 12, 24, 48V Contact...
