TX2-L2-9V, TX2-3V - TX RELAYS

Panasonic

Datasheet Details

Part number	TX2-L2-9V, TX2-3V
Manufacturer	Panasonic
File Size	3.33 MB
Description	TX RELAYS
Datasheet	TX2-3V_Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: TX2-L2-9V, TX2-3V. Please refer to the document for exact specifications by model.

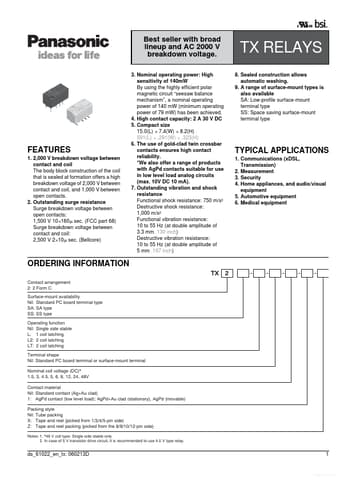

1. 2,000 V breakdown voltage between contact and coil The body block construction of the coil that is sealed at formation offers a high breakdown voltage of 2,000 V between contact and coil, and 1,000 V between open contacts. 2. Outstanding surge resistance Surge breakdown voltage between open contacts: 1,500 V 10160 sec. (FCC part 68) Surge breakdown voltage between contact and coil: 2,500 V 210 sec. (Bellcore).
