TXS2-12V - TX-S RELAYS

This page provides the datasheet information for the TXS2-12V, a member of the TXS2-LT-3V TX-S RELAYS family.

Datasheet Summary

Features

  • 1. Nominal operating power: High sensitivity of 50 mW By using the highly efficient polar magnetic circuit “seesaw balance mechanism”, a nominal operating power of 50 mW (minimum operating power of 32 mW) has been achieved. 2. Compact size 15.0(L)  7.4(W)  8.2(H) .591(L)  .291(W)  .323(H).

📥 Download Datasheet

Datasheet preview – TXS2-12V

Datasheet Details

Part number TXS2-12V
Manufacturer Panasonic
File Size 3.65 MB
Description TX-S RELAYS
Datasheet download datasheet TXS2-12V Datasheet
Additional preview pages of the TXS2-12V datasheet.

📁 Similar Datasheet

  • TXS2-xxxV - TX-S relay / Small polarized relay (NAIS)
  • TXS2A125-xxx - (TXS Series) Temperature Compensated Crystal Oscillators (Raltron Electronics Corporation)
  • TXS0101 - Voltage-Level Translator (Texas Instruments)
  • TXS0102 - 2-Bit Bidirectional Voltage-Level Translator (Texas Instruments)
  • TXS0102-Q1 - Voltage-Level Translator (Texas Instruments)
  • TXS0104E - Voltage-Level Translator (Texas Instruments)
  • TXS0104E-Q1 - Voltage-Level Translator (Texas Instruments)
  • TXS0108E - Voltage Translator (Texas Instruments)
  • TXS0108E-Q1 - Voltage Translator (Texas Instruments)
  • TXS0202 - Voltage-Level Translator (Texas Instruments)
Other Datasheets by Panasonic

Full PDF Text Transcription

Click to expand full text

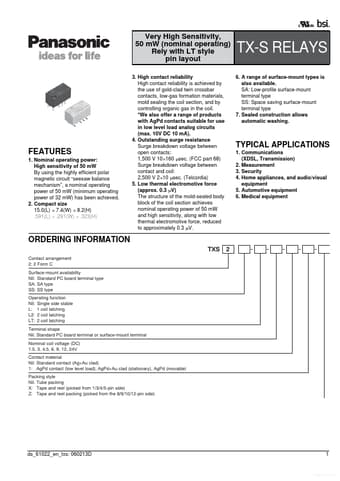

TX-S Very High Sensitivity, 50 mW (nominal operating) Rely with LT style pin layout 3. High contact reliability High contact reliability is achieved by the use of gold-clad twin crossbar contacts, low-gas formation materials, mold sealing the coil section, and by controlling organic gas in the coil. *We also offer a range of products with AgPd contacts suitable for use in low level load analog circuits (max. 10V DC 10 mA). 4. Outstanding surge resistance Surge breakdown voltage between open contacts: 1,500 V 10160 sec. (FCC part 68) Surge breakdown voltage between contact and coil: 2,500 V 210 sec. (Telcordia) 5. Low thermal electromotive force (approx. 0.
