MLSS156-xx Datasheet - Pancon

MLSS156-xx 3.96mm Headers

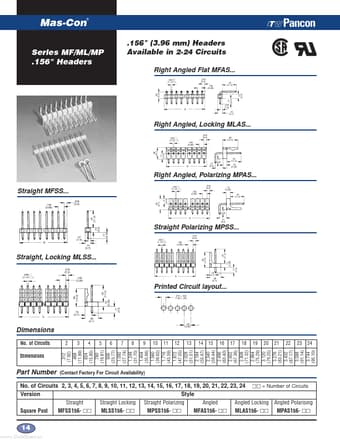

Mas-Con ® Series MF/ML/MP .156" Headers .156" (3.96 mm) Headers Available in 2-24 Circuits Right Angled Flat MFAS Right Angled, Locking MLAS Right Angled, Polarizing MPAS Straight MFSS Straight Polarizing MPSS Straight, Locking MLSS Printed Circuit layout Dimensions No. of Circuits Dimensions 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 .312 (7.92) .468 (11.89) .624 (15.85) .780 (19.81) .936 (23.77) 1.092 (27.74) 1.248 (31.70) 1.404 (35.66) 1.560 (39.62) 1.716 (43.59) 1..

MLSS156-xx_Pancon.pdf

MLSS156-xx Datasheet Preview — Preview of MLSS156-xx PDF

Datasheet Details

Part number:

MLSS156-xx

Manufacturer:

Pancon

File Size:

103.99 KB

Description:

3.96mm headers.
