A-564H Datasheet - Para Light Electronics

A-564H (A-564x) LED Display

www.DataSheet4U.com C/A-564X FOUR DIGITS DISPLAY Shape Part No. Common Common Cathode Anode Chip Raw Material Emitted Color Wave Electro-Optical Characteristics Length Vf(V)20mA Iv(ucd)10mA ɡp(nm) Typ. Max. Typ. Fig.No. C-564H C-564E C-564G C-564Y C-564SR A-564H A-564E A-564G A-564Y A-564SR GaP Red 700 635 565 585 660 2.3 2.1 2.1 2.1 1.8 2.8 2.8 2.8 2.8 2.2 700 2000 2000 1600 21000 D52 GaAsP/GaP Hi.effi Red GaP Green GaAsP/GaP Yellow GaAlAs Super Red Fig. D52 8.10(.319 ) 8 19.00(..

A-564H Datasheet (231.70 KB)

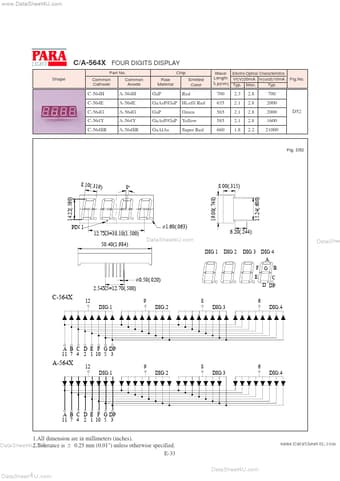

Preview of A-564H PDF

Datasheet Details

Part number:

A-564H

Manufacturer:

Para Light Electronics

File Size:

231.70 KB

Description:

(a-564x) led display.
