PE9309

3.0 - 13.5 GHz Low Power UltraCMOS Divide-by-4 Prescaler

PE9309 Features

*  High-frequency operation: up to 13.5 GHz

*  Fixed divide ratio of 4

*  Low-power operation:16 mA typical @ 2.6V

*  Small package: 8-lead CFP

*  Available as DIE Figure 2. Package Type 8-lead CFP Figure 1. Functional Schematic Diagram D SET Q D SET Q ESD Q CLR Chip Bounda

PE9309 General Description

he PE9309 is a high-performance dynamic UltraCMOS® prescaler with a fixed divide ratio of 4. Its operating frequency range is 3.0 GHz to 13.5 GHz. The PE9309 operates on a single supply with a frequency-selecting bias resistor and draws only 16 mA. It is packaged in a small 8-lead CFP and is also av.

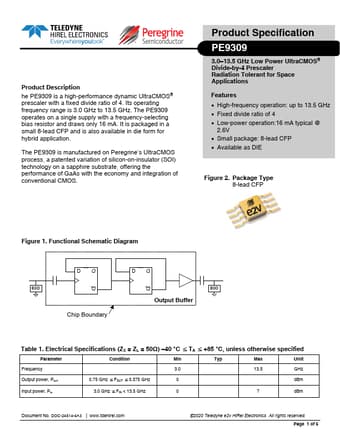

PE9309 Datasheet (1.96 MB)

Preview of PE9309 PDF

Datasheet Details

Part number:

PE9309

Manufacturer:

Peregrine Semiconductor

File Size:

1.96 MB

Description:

3.0 - 13.5 ghz low power ultracmos divide-by-4 prescaler.
