PI3C32X245 2.5V/3.3V/ High Bandwidth/ Hot Insertion 16-Bit/ 2-Port/ Bus Switch

Pericom Semiconductor’s PI3C32X245 is a 2.5V or 3.3V 16-bit, 2-port bus switch designed with a low On-Resistance (5-ohm) allowing inputs to be connected directly to outputs. The bus switch creates no additional propagational delay or additional ground bounce noise. The switches are turned ON by the .

PI3C32X245 Features

* Near-Zero propagation delay

* 5-ohm switches connect inputs to outputs

* Permits Hot Insertion

* 5V I/O Tolerant

* 2.5V Supply Voltage Operation

* Rail-to-Rail 3.3Vor 2.5V Switching

* High Bandwidth Operation (>400 MHz)

* Packaging (P

PI3C32X245_PericomSemiconductorCorporation.pdf

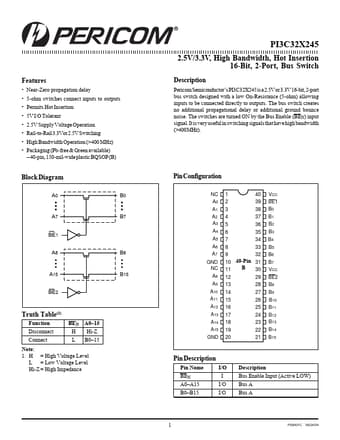

PI3C32X245 Datasheet Preview — Preview of PI3C32X245 PDF

Datasheet Details

Part number:

PI3C32X245

Manufacturer:

Pericom Semiconductor Corporation

File Size:

172.71 KB

Description:

2.5v/3.3v/ high bandwidth/ hot insertion 16-bit/ 2-port/ bus switch.
