PI5V332 Datasheet Low On-Resistance Wideband/Video Quad with Individual Control

Manufacturer: Pericom Semiconductor (now Diodes Incorporated)

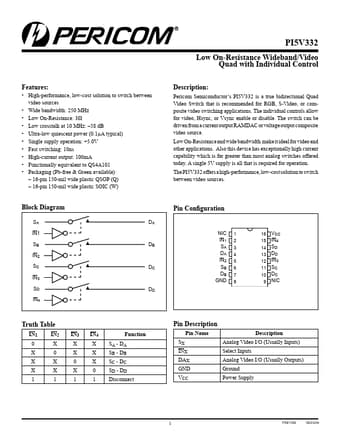

PI5V332 low on-resistance wideband/video quad with individual control by Pericom Semiconductor (now Diodes Incorporated) - Datasheet Preview

Datasheet Details

Part number	PI5V332
Manufacturer	Pericom Semiconductor (now Diodes Incorporated)
File Size	405.72 KB
Description	Low On-Resistance Wideband/Video Quad with Individual Control
Download	PI5V332 Download (PDF)

General Description

: Pericom Semiconductor’s PI5V332 is a true bidirectional Quad Video Switch that is recommended for RGB, S-Video, or composite video switching applications.

The individual controls allow for video, Hsync, or Vsync enable or disable.

The switch can be driven from a current output RAMDAC or voltage output composite video source.

Overview

PI5V332 Low On-Resistance Wideband/Video Quad with Individual.

Key Features

High-performance, low-cost solution to switch between video sources.
Wide bandwidth: 250 MHz.
Low On-Resistance: 3Ω.
Low crosstalk at 10 MHz:.
58 dB.
Ultra-low quiescent power (0.1µA typical).
Single supply operation: +5.0V.
Fast switching: 10ns.
High-current output: 100mA.
Functionally equivalent to QS4A101.
Packaging (Pb-free & Green available):.
16-pin 150-mil wide plastic QSOP (Q).
