PI74AVC!6820 - 2.5V 10-Bit Flip-Flop with Dual and 3-State Outputs

PI74AVC!6820 Description

PI74AVC+16820 2.5V 10-Bit Flip-Flop with Dual and 3-State Outputs .
Pericom Semiconductor’s PI74AVC+16820, a 10-bit flip-flop designed for 1.

PI74AVC!6820 Features

* PI74AVC+16820 is designed for low-voltage operation, VCC = 1.65V to 3.6V
* True ±24mA Balanced Drive @ 3.3V
* IOFF supports Partial power-down operation
* 3.6V I/O Tolerant inputs and outputs
* All outputs contain a patented DDC (Dynamic DriveControl) circui

📥 Download Datasheet

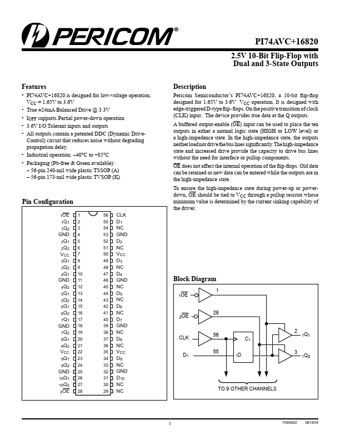

Preview of PI74AVC!6820 PDF
datasheet Preview Page 2 datasheet Preview Page 3
