PI74FCT244DTSE, PI7, Fast CMOS Octal Buffer/Line Drivers

PI74FCT244T/2244T PI74FCT541T/2541T Fast CMOS Octal Buffer/Line Drivers .
Pericom Semiconductor’s PI74FCT244T/541T and P174FCT2244/ 2541T are 8-bit wide driver circuits, designed to be used in applications requiring high-spe.

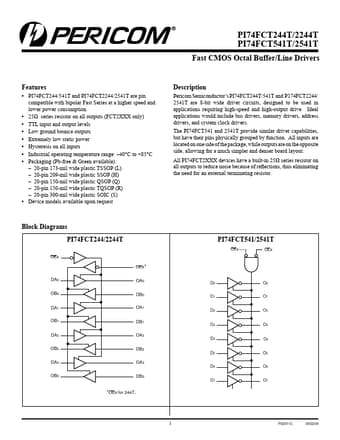

datasheet Preview Page 1 from Datasheet4u.com

PI7-4FC.pdf

PI74FCT244DTSE Datasheet Preview — This datasheet PDF includes multiple part numbers: PI74FCT244DTSE, PI7. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PI74FCT244DTSE, PI7

Manufacturer:

Pericom Semiconductor Corporation

File Size:

434.46 KB

Description:

Fast CMOS Octal Buffer/Line Drivers

Note:

This datasheet PDF includes multiple part numbers: PI74FCT244DTSE, PI7.
Please refer to the document for exact specifications by model.

Features

* PI74FCT244/541T and PI74FCT2244/2541T are pin compatible with bipolar Fast Series at a higher speed and lower power consumption
* 25Ω series resistor on all outputs (FCT2XXX only)
* TTL input and output levels
* Low ground bounce outputs
* Extremely low stat

Applications

* requiring high-speed and high-output drive. Ideal applications would include bus drivers, memory drivers, address drivers, and system clock drivers. The PI74FCT541 and 2541T provide similar driver capabilities, but have their pins physically grouped by function. All inputs are located on one side of
