PI74LVTC16244A 3.3V 16-Bit Buffer/Line Driver with 3-State Outputs

Pericom Semiconductor’s PI74LVTC series of logic circuits are produced using the Company’s advanced CMOS technology, achieving industry leading speed. The PI74LVTC16244 is a non-inverting 16-bit buffer and line driver designed for low-voltage 2.7V to 3.6V VCC operation, with the capability of interf.

12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 PI74LVTC16244 3.3V 16-Bit Buffer/Line Driver with 3-State Outputs Product F.

PI74LVTC16244A Features

* Advanced low power CMOS design for 2.7V to 3.6V VCC operation

* Supports 5V input/output tolerance in mixed signal mode operation

* Function compatible with LVT family of products

* Balanced ±24mA output drive

* Typical VOLP (Output Ground Bounce)

PI74LVTC16244A Datasheet (165.96 KB)

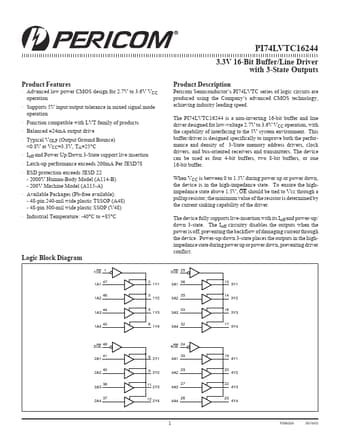

PI74LVTC16244A Datasheet Preview — Preview of PI74LVTC16244A PDF

Datasheet Details

Part number:

PI74LVTC16244A

Manufacturer:

Pericom Semiconductor Corporation

File Size:

165.96 KB

Description:

3.3v 16-bit buffer/line driver with 3-state outputs.
