PI49FCT805T - (PI49FCTx80xT) Fast CMOS Buffer/Clock Driver

Pericom Semiconductor

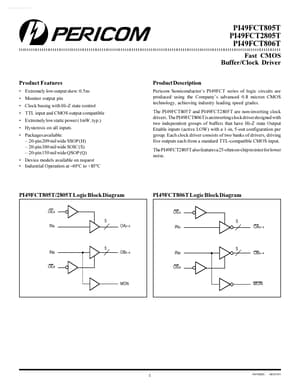

PI49FCT805T Datasheet Preview — Preview of PI49FCT805T PDF

Datasheet Details

Part number	PI49FCT805T
Manufacturer	Pericom Semiconductor
File Size	421.41 KB
Description	(PI49FCTx80xT) Fast CMOS Buffer/Clock Driver
Datasheet	PI49FCT805T_PericomSemiconductor.pdf

PI49FCT805T Product details

Description

Pericom Semiconductors PI49FCT series of logic circuits are produced using the Companys advanced 0.8 micron CMOS technology, achieving industry leading speed grades.

Features

Extremely low output skew: 0.5ns Monitor output pin Clock busing with Hi-Z state control TTL input and CMOS output compatible Extremely low static power (1mW, typ. ) Hysteresis on all inputs Packages available: 20-pin 209 mil wide SSOP (H) 20-pin 300 mil wide SOIC (S) 20-pin 150 mil wide QSOP (Q) Device models available on request Industrial Operation at -40ºC to +85ºC Product.
