PI90LV044 - LVDS Dual 2x2 Crosspoint/Repeater Switch

Product Overview

Pericom Semiconductor

Part number	PI90LV044
Manufacturer	Pericom Semiconductor
File Size	463.08 KB
Description	LVDS Dual 2x2 Crosspoint/Repeater Switch
Datasheet	PI90LV044 Datasheet

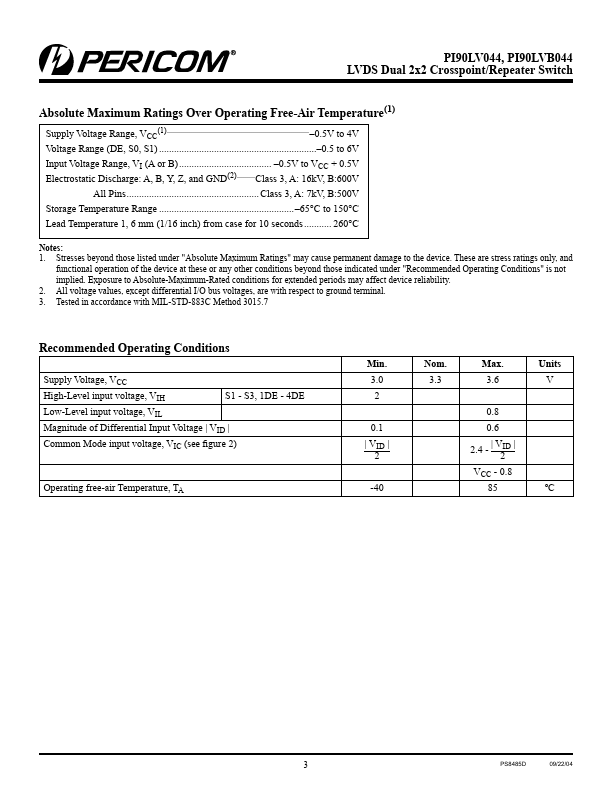

Additional preview pages of the PI90LV044 datasheet.

The PI90LV044 and PI90LVB044 are monolithic dual 2x2 asynchronous crosspoint/repeater switches.

Dual 2x2 Crosspoint/Repeater Switch.
Meets or Exceeds the Requirements of ANSI TIA/EIA-644-1995.
Designed for Signaling Rates up to 650 Mbit/s (325Mhz).
Operates from a single 3.3V Supply:.
40°C to 85°C.
Low-Voltage Differential Signaling with Output Voltages of ±350mV into: - 100Ω load (PI90LV044) - 50Ω load Bus LVDS Signaling (PI90LVB044).
Accepts ±350mV differential inputs.
Wide common mode input range: 0.2V to 2.7V.
