PT8A974, PT8A973, (PT8A972 - PT8A974) 8-Direction Remote Controller

Data Sheet PT8A9702/973/973L/974/974L 8-Direction Remote Controller ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||.
The PT8A9702P works as encoder, it can provide 8direction remote control for toy car application with PT8A973/973L/PT8A974/974L together.

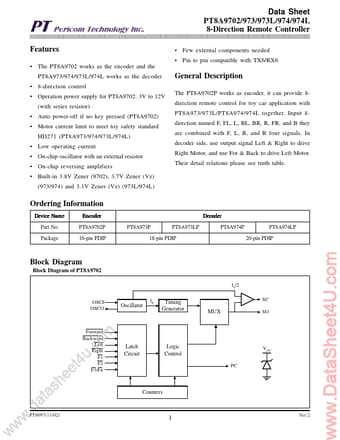

datasheet Preview Page 1 from Datasheet4u.com

PT8A973_PericomTechnology.pdf

PT8A974 Datasheet Preview — This datasheet PDF includes multiple part numbers: PT8A974, PT8A973. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PT8A974, PT8A973

Manufacturer:

Pericom Technology

File Size:

146.14 KB

Description:

(PT8A972 - PT8A974) 8-Direction Remote Controller

Note:

This datasheet PDF includes multiple part numbers: PT8A974, PT8A973.
Please refer to the document for exact specifications by model.

Features

* The PT8A9702 works as the encoder and the PT8A973/974/973L/974L works as the decoder
* 8-direction control
* Operation power supply for PT8A9702: 3V to 12V (with series resistor)
* Auto power-off if no key pressed (PT8A9702)
* Motor current limit to meet toy
