GP-15B Triggered Spark Gaps

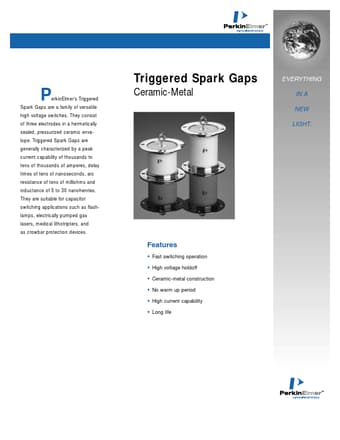

Triggered Spark Gaps EVERYTHING IN A NEW LIGHT. P erkinElmer’s Triggered Ceramic-Metal Spark Gaps are a family of versatile high voltage switches. They consist of three electrodes in a hermetically sealed, pressurized ceramic envelope. Triggered Spark Gaps are generally characterized by a peak current capability of thousands to tens of thousands of amperes, delay times of tens of nanoseconds, arc resistance of tens of milliohms and inductance of 5 to 30 nanohenries. They are suitable for ca.

GP-15B Features

* Fast switching operation

* High voltage holdoff

* Ceramic-metal construction

* No warm up period

* High current capability

* Long life Triggered Spark Gap Ratings O -A PerkinElmer Range, kV Model Min/Max No. (1,10) (2) GP-89 GP-90 GP-91 GP-93 GP-82B
