TPS23B - Thermopile Sensor

Product Overview

PerkinElmer Optoelectronics

Datasheet Details

Part number	TPS23B
Manufacturer	PerkinElmer Optoelectronics
File Size	214.35 KB
Description	Thermopile Sensor
Datasheet	TPS23B Datasheet

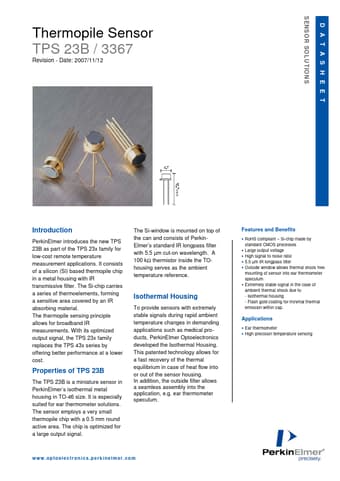

Additional preview pages of the TPS23B datasheet.

Product details

Description

Metal cap with integrated IR window TO-46 (3 isolated + 1 ground) pins with solderable gold coating Si-based interference IR longpass filter Thermistor 100 kΩ The sensor is sealed in a dry nitrogen environment and gross leak proof PerkinElmer Logo “P” + device number xxxx + 3 digits date code YWW 2.2 Electrical Characteristics Table 3: Thermopile sensor characteristics Symbol RTP Parameter Sensitive area Resistance Min Typ 0.2 80 SV Responsivity 57 ∆U / ∆T ∆U / ∆T τ VRMS Average sensiti

Features

RoHS compliant.
Si-chip made by standard CMOS processes.
Large output voltage.
High signal to noise ratio.
5.5 µm IR longpass filter.
Outside window allows thermal shock free mounting of sensor into ear thermometer speculum.
Extremely stable signal in the case of ambient thermal shock due to - Isothermal housing - Flash gold coating for minimal thermal emission within cap.
