VTD206 Datasheet - PerkinElmer Optoelectronics

Alternate Source/ Second Source Photodiodes

VTD206 General Description

Large area planar silicon photodiode in a cast epoxy sidelooker, similar in outline to the TO-92 package. The package material filters out all visible light but passes infrared. These diodes exhibit low dark current under reverse bias and fast speed of response. ABSOLUTE MAXIMUM RATINGS Storage Tem.

VTD206 Datasheet (26.05 KB)

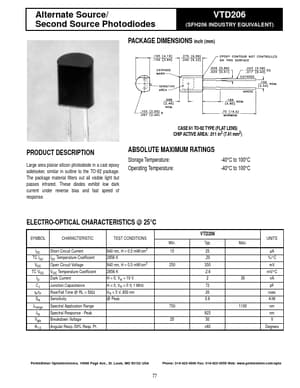

Preview of VTD206 PDF

Datasheet Details

Part number:

VTD206

Manufacturer:

PerkinElmer Optoelectronics

File Size:

26.05 KB

Description:

Alternate source/ second source photodiodes.
Alternate Source/ Second Source Photodiodes VTD206 (SFH206 INDUSTRY EQUIVALENT) PACKAGE DIMENSIONS inch (mm) CASE 61 TO-92 TYPE (FLAT LENS) CHIP AC.
