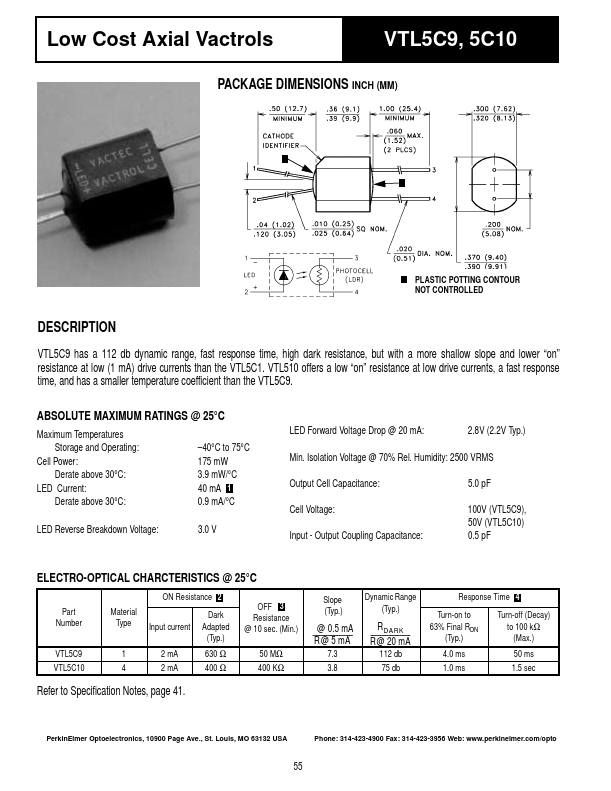

VTL5C10
DESCRIPTION
VTL5C9 has a 112 db dynamic range, fast response time, high dark resistance, but with a more shallow slope and lower “on” resistance at low (1 m A) drive currents than the VTL5C1. VTL510 offers a low “on” resistance at low drive currents, a fast response time, and has a smaller temperature coefficient than the VTL5C9.
ABSOLUTE MAXIMUM RATINGS @ 25°C
Maximum Temperatures Storage and Operating:
Cell Power: Derate above 30°C:
LED Current: Derate above 30°C:
- 40°C to 75°C 175 m W 3.9 m W/°C 40 m A 1 0.9 m A/°C
LED Reverse Breakdown Voltage:
3.0 V
LED Forward Voltage Drop @ 20 m A:
2.8V (2.2V Typ.)
Min. Isolation Voltage @ 70% Rel. Humidity: 2500 VRMS
Output Cell Capacitance:
5.0 p F
Cell Voltage: Input
- Output Coupling Capacitance:
100V (VTL5C9), 50V (VTL5C10) 0.5 p F
ELECTRO-OPTICAL CHARCTERISTICS @ 25°C
Part Number
VTL5C9 VTL5C10
Material Type
1 4
ON Resistance 2
Input current
2 m A 2 m A
Dark Adapted
(Typ.)
630 Ω 400 Ω
OFF 3 Resistance @ 10 sec. (Min.)
50 MΩ 400...
