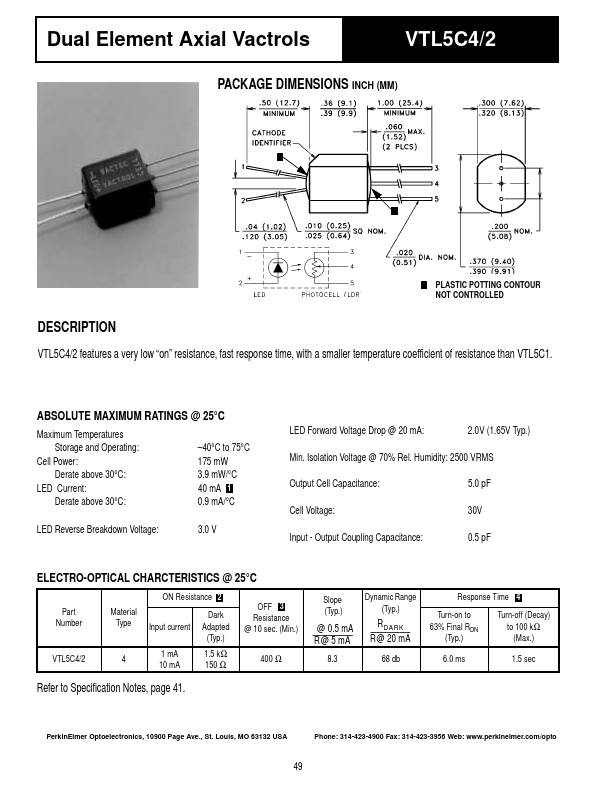

VTL5C4-2
DESCRIPTION
VTL5C4/2 features a very low “on” resistance, fast response time, with a smaller temperature coefficient of resistance than VTL5C1.
ABSOLUTE MAXIMUM RATINGS @ 25°C
Maximum Temperatures Storage and Operating:
Cell Power: Derate above 30°C:
LED Current: Derate above 30°C:
- 40°C to 75°C 175 m W 3.9 m W/°C 40 m A 1 0.9 m A/°C
LED Reverse Breakdown Voltage:
3.0 V
LED Forward Voltage Drop @ 20 m A:
2.0V (1.65V Typ.)
Min. Isolation Voltage @ 70% Rel. Humidity: 2500 VRMS
Output Cell Capacitance:
5.0 p F
Cell Voltage:
30V
Input
- Output Coupling Capacitance:
0.5 p F
ELECTRO-OPTICAL CHARCTERISTICS @ 25°C
Part Number
VTL5C4/2
Material Type
ON Resistance 2
Input current
1 m A 10 m A
Dark Adapted
(Typ.)
1.5 kΩ 150 Ω
OFF 3 Resistance @ 10 sec. (Min.)
400 Ω
Slope (Typ.)
--R-@---@----0--5-.-5--m--m--A--A--
Dynamic Range (Typ.)
R-----@R----D--2-A--0-R---m K----A-
68 db
Response Time 4
Turn-on...
