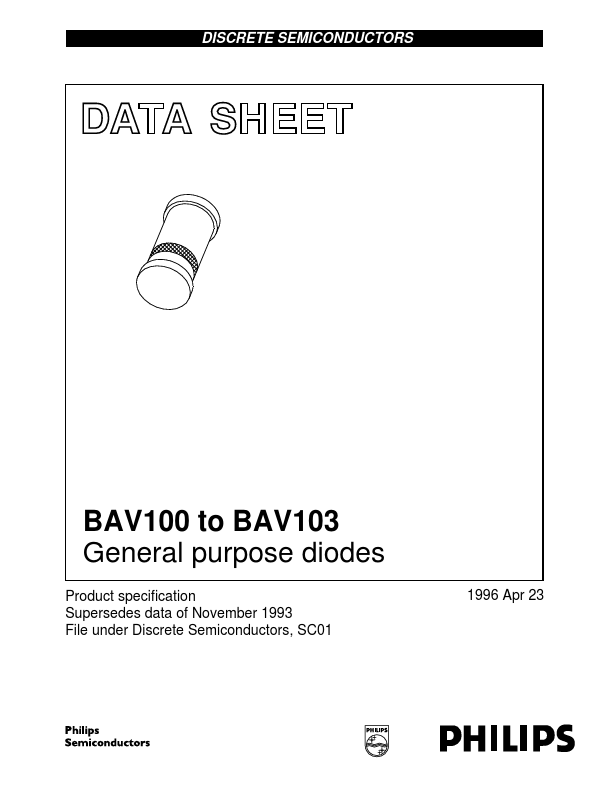

BAV100 Datasheet Preview — Preview of BAV100 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BAV100
Manufacturer: Philips
File Size: 65.22 KB
Datasheet: BAV100-Philips.pdf
Description: General purpose diodes

BAV100 Product details

Description

The BAV100 to BAV103 are switching diodes fabricated in planar technology, and encapsulated in small hermetically sealed glass SOD80C SMD packages.

Features

Small hermetically sealed glass SMD package.
Switching speed: max. 50 ns.
General application.
Continuous reverse voltage: max. 50 V, 100 V, 150 V and 200 V respectively.
Repetitive peak reverse voltage: max. 60 V, 120 V, 200 V and 250 V respectively.
Repetitive peak forward current: max. 625 mA.
Forward voltage: max. 1 V.
