BAV102, BAV100 General purpose diodes

Philips

Description

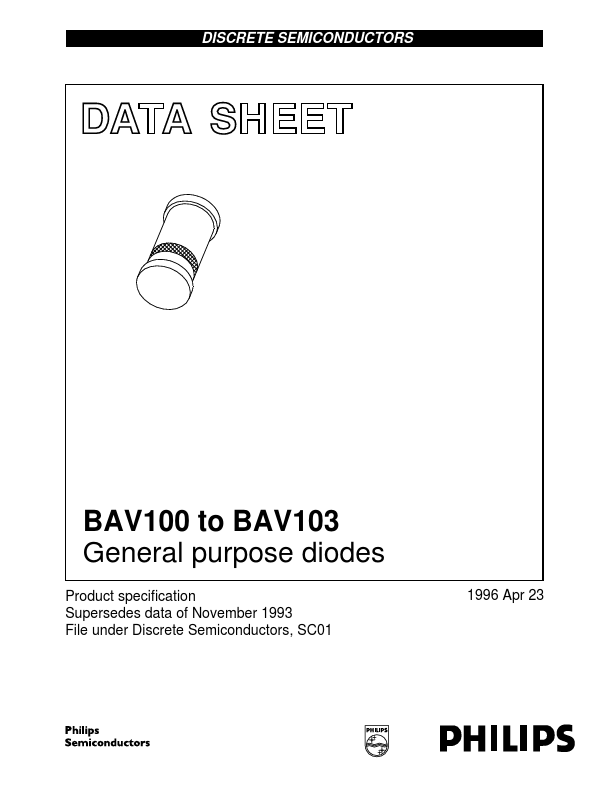

DISCRETE SEMICONDUCTORS DATA SHEET 1/3 page (Datasheet) M3D054 BAV100 to BAV103 General purpose diodes Product speciﬁcation Supersedes data of Novemb.
The BAV100 to BAV103 are switching diodes fabricated in planar technology, and encapsulated in small hermetically sealed glass SOD80C SMD packages.

📥 Download Datasheet

BAV102 Datasheet Preview — This datasheet PDF includes multiple part numbers: BAV102, BAV100. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BAV102, BAV100
Manufacturer: Philips
File Size: 65.22 KB
Datasheet: BAV100-Philips.pdf
Description: General purpose diodes
Note: This datasheet PDF includes multiple part numbers: BAV102, BAV100.
Please refer to the document for exact specifications by model.

Features

* Small hermetically sealed glass SMD package
* Switching speed: max. 50 ns

Applications

* Switching in industrial equipment e. g. oscilloscopes, digital voltmeters and video output stages in colour television. Cathode indicated by green band. Fig.1 Simplified outline (SOD80C) and symbol. 1996 Apr 23 2 Philips Semiconductors General purpose diodes Product speciﬁcation BAV100
