BT153 - FAST TURN-OFF THYRISTOR

Philips

Datasheet Details

Part number	BT153
Manufacturer	Philips
File Size	297.01 KB
Description	FAST TURN-OFF THYRISTOR
Datasheet	BT153 Datasheet
Additional preview pages of the BT153 datasheet.

📁 Similar Datasheet

BT153 - Thyristor (INCHANGE)
BT153-1200T - SCR (WeEn)
BT153B-1200T-A - Automotive Grade SCR (WeEn)
BT150 - Thyristors logic level (NXP)
BT150 - SCRs (UTC)
BT150 - SCRs (HAOPIN)
BT150-500R - Thyristors logic level (NXP)
BT150-500R - SCRs (HAOPIN)
BT150-600R - Thyristors logic level (NXP)
BT150-600R - SCRs (HAOPIN)

Other Datasheets by Philips

BT151 - Thyristors
BT152-500R - Thyristors
BT154 - FAST TURN-OFF THYRISTOR
BT139 - Triacs
BT168 - Thyristors

Full PDF Text Transcription

Click to expand full text

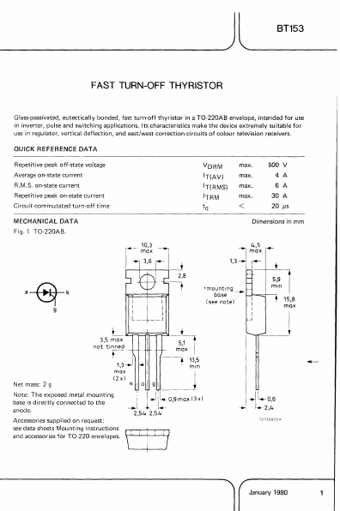

_ _ _ _ _ _ _jl__B_T153_ FAST TURN-OFF THYRISTOR Glass-passivated, eutectically bonded, fast turn-off thyristor in a TO-220AB envelope, intended for use in inverter, pulse and switching applications. Its characteristics make the device extremely suitable for use in regulator, vertical deflection, and east/west correction circuits of colour television receivers. QUICK REFERENCE DATA Repetitive peak off-state voltage Average on-state current R.M.S. on-state current Repetitive peak on-state cu rrent Circuit-commutated turn-off time VDRM IT(AV) IT(RMS) ITRM tq max. max. max. max. < 500 V 4A 6A 30 A 20 IlS MECHANICAL DATA Dimensions in mm Fig. 1 TO-220AB. '-&-k g ~°ci~ - --+ -. 3,6 .1 -----+--+---; 2,8 t - I .
