L1T2-3580000000000, L1T2-3070000000000 Datasheet - Philips

L1T2-3580000000000, L1T2-3070000000000, LED

LUXEON TX Extreme efficacy that will transform your next market leading luminaire Introduction LUXEON® TX emitters are illumination grade LEDs design.

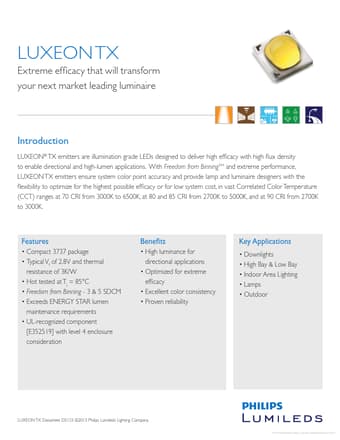

datasheet Preview Page 1 from Datasheet4u.com

L1T2-3070000000000_Philips.pdf

L1T2-3580000000000 Datasheet Preview — This datasheet PDF includes multiple part numbers: L1T2-3580000000000, L1T2-3070000000000. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

L1T2-3580000000000, L1T2-3070000000000

Manufacturer:

Philips

File Size:

1.48 MB

Description:

LED

Note:

This datasheet PDF includes multiple part numbers: L1T2-3580000000000, L1T2-3070000000000.
Please refer to the document for exact specifications by model.

Features

* Compact 3737 package
* Typical Vf of 2.8V and thermal resistance of 3K/W
* Hot tested at Tj = 85°C
* Freedom from Binning - 3 & 5 SDCM
* Exceeds ENERGY STAR lumen maintenance requirements
* UL-recognized component [E352519] with level 4 enclosure con

Applications

* With Freedom from BinningTM and extreme performance, LUXEON TX emitters ensure system color point accuracy and provide lamp and luminaire designers with the flexibility to optimize for the highest possible efficacy or for low system cost, in vast Correlated Color Temperature (CCT) ranges at 70 C
