MC3410C, MC3410 10-Bit high-speed multiplying D/A converter

MC3410C Description

Philips Semiconductors Linear Products 10-Bit high-speed multiplying D/A converter Product specification MC3410, MC3410C .
The MC3410 series are 10-bit Multiplying Digital-to-Analog Converters.

MC3410C Features

* 10-bit resolution and accuracy (±0.05%)
* Guaranteed monotonicity over temperature
* Fast settling time
* 250ns typical
* Digital inputs are TTL and CMOS compatible
* Wide output voltage compliance range
* High-speed multiplying input slew rate

MC3410C Applications

* Successive approximation A/D converters
* High-speed, automatic test equipment
* High-speed modems
* Waveform generators
* CRT displays
* Strip CHART and X-Y plotters
* Programmable power supplies
* Programmable gain and attenuation O

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MC3410C, MC3410. Please refer to the document for exact specifications by model.

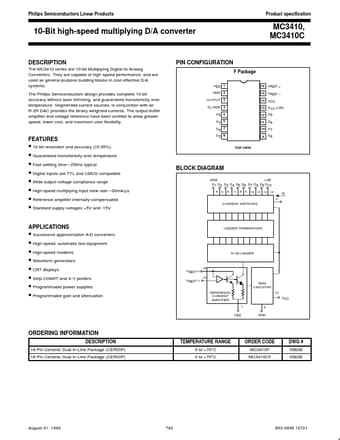

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC3410C, MC3410
Manufacturer
Philips
File Size
74.40 KB
Datasheet
MC3410-Philips.pdf
Description
10-Bit high-speed multiplying D/A converter
Note
This datasheet PDF includes multiple part numbers: MC3410C, MC3410.
Please refer to the document for exact specifications by model.
