NE602 Double-Balanced Mixer and Oscillator

NE602 Description

NEjSA602 Double-Balanced Mixer and Oscillator Product Specification .
The SA/NE602 is a low-power VHF monolithic double-balanced mixer with input amplifier, on-board oscillator, and voltage regulator.

NE602 Features

* Low current consumption: 2

NE602 Applications

* The mixer is a "Gilbert cell" multiplier configuration which typically provides 18dB of gain at 45MHz. The oscillator will operate to 200M Hz. It can be configured as a crystal oscillator, a tuned tank oscillator, or a buffer for an external L. O. The noise figure at 45MHz is typically less than 5dB

📥 Download Datasheet

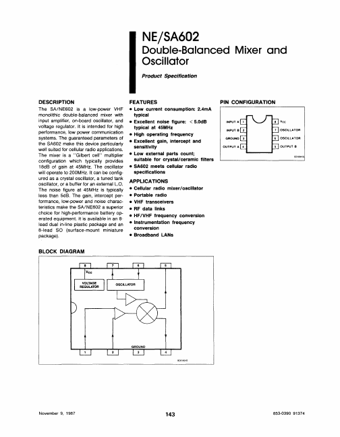

Preview of NE602 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NE602
Manufacturer
Philips
File Size
195.91 KB
Datasheet
NE602-Philips.pdf
Description
Double-Balanced Mixer and Oscillator
