NE615

SA615

NE615 Features

* a higher mixer input intercept point, higher IF bandwidth (25MHz) and temperature compensated RSSI and limiters permitting higher performance application. The SA615 is available in 20-lead dual-in-line plastic, 20-lead SOL (surface-mounted miniature package) and 20-lead SSOP (shrink small outline pa

NE615 General Description

The SA615 is a high performance monolithic low-power FM IF system incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers, quadrature detector, muting, logarithmic received signal strength indicator (RSSI), and voltage regulator. The SA615 combines the functions of Signetics.

NE615 Datasheet (159.70 KB)

Preview of NE615 PDF

Datasheet Details

Part number:

NE615

Manufacturer:

Philips

File Size:

159.70 KB

Description:

sa615.

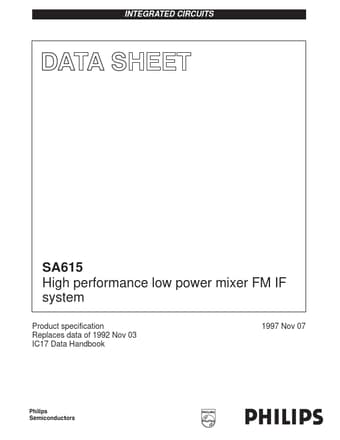

INTEGRATED CIRCUITS SA615 High performance low power mixer FM IF system Product specification Replaces data of 1992 Nov 03 IC17 Data Handbook 1997 No.
