PCB83C562

Single-chip 8-bit microcontroller

Philips

PCB83C562 Features

* 80C51 instruction set

* 8k × 8 ROM expandable externally to 64k bytes

* 256 × 8 RAM, expandable externally to 64k bytes

* Two standard 16-bit timer/counters

* An additional 16-bit timer/counter coupled to four capture registers and three compare registers

PCB83C562 General Description

The 80C562/83C562 (hereafter generically referred to as 8XC562) Single-Chip 8-Bit Microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family. The 83C562/83C562 has the same instruction set as the 80C51. The 8XC562 contains a non-volatile 256 ×.

PCB83C562 Datasheet (199.03 KB)

PCB83C562 Datasheet Preview — Preview of PCB83C562 PDF

Datasheet Details

Part number:

PCB83C562

Manufacturer:

Philips

File Size:

199.03 KB

Description:

Single-chip 8-bit microcontroller.

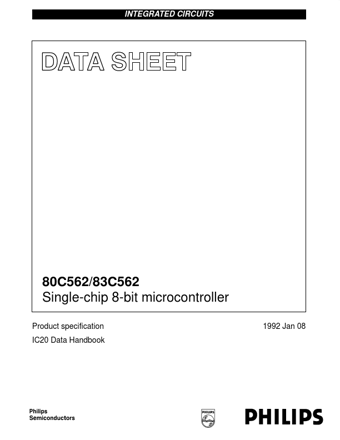

INTEGRATED CIRCUITS 80C562/83C562 Single-chip 8-bit microcontroller Product specification IC20 Data Handbook 1992 Jan 08 Philips Semiconductors Ph.
