PHP12N50E - PowerMOS transistors

Datasheet Summary

Description

N-channel, enhancement mode field-effect power transistor, intended for use in off-line switched mode power supplies, T.V.

and computer monitor power supplies, d.c.

to d.c.

Features

  • Repetitive Avalanche Rated.
  • Fast switching.
  • Stable off-state characteristics.
  • High thermal cycling performance.
  • Low thermal resistance PHB11N50E, PHW11N50E SYMBOL d QUICK.

📥 Download Datasheet

Datasheet preview – PHP12N50E

Datasheet Details

Part number PHP12N50E
Manufacturer Philips
File Size 118.05 KB
Description PowerMOS transistors
Datasheet download datasheet PHP12N50E Datasheet
Additional preview pages of the PHP12N50E datasheet.

📁 Similar Datasheet

  • PHP12N10E - PowerMOS transistor (NXP)
  • PHP12NQ15T - N-channel TrenchMOS transistor (NXP)
  • PHP120 - 7/500 & 15/000 Watt TVS Module (Semtech Corporation)
  • PHP125 - P-channel enhancement mode MOS transistor (NXP)
  • PHP125N06LT - TrenchMOS transistor Logic level FET (NXP)
  • PHP125N06T - TrenchMOS transistor Standard level FET (NXP)
  • PHP129NQ04LT - N-channel TrenchMOS logic level FET (NXP Semiconductors)
  • PHP101NQ03LT - TrenchMOS logic level FET (NXP)
  • PHP101NQ04T - N-channel TrenchMOS standard level FET (NXP Semiconductors)
  • PHP1025 - P-channel enhancement mode MOS transistor (NXP)
Other Datasheets by Philips

Full PDF Text Transcription

Click to expand full text

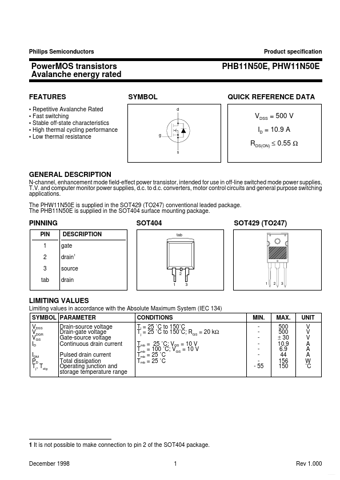

Philips Semiconductors Product specification PowerMOS transistors Avalanche energy rated FEATURES • Repetitive Avalanche Rated • Fast switching • Stable off-state characteristics • High thermal cycling performance • Low thermal resistance PHB11N50E, PHW11N50E SYMBOL d QUICK REFERENCE DATA VDSS = 500 V g ID = 10.9 A RDS(ON) ≤ 0.55 Ω s GENERAL DESCRIPTION N-channel, enhancement mode field-effect power transistor, intended for use in off-line switched mode power supplies, T.V. and computer monitor power supplies, d.c. to d.c. converters, motor control circuits and general purpose switching applications. The PHW11N50E is supplied in the SOT429 (TO247) conventional leaded package. The PHB11N50E is supplied in the SOT404 surface mounting package.
