RC01

General purpose chip resistors

Philips

RC01 Features

* Low assembly costs

* High component and equipment reliability

* Excellent performance at high frequency, especially the RC31

* Complete standard SMD family. APPLICATIONS

* All general purpose applications. DESCRIPTION The resistors are constructed on a high

RC01 General Description

The resistors are constructed on a high grade ceramic body (aluminium oxide). Internal metal electrodes are added at each end and connected by a resistive paste which is applied to the top surface of the substrate. The composition of the paste is adjusted to give the approximate resistance required .

RC01 Datasheet (75.86 KB)

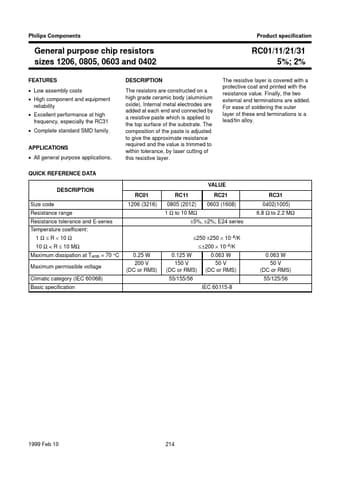

RC01 Datasheet Preview — Preview of RC01 PDF

Datasheet Details

Part number:

RC01

Manufacturer:

Philips

File Size:

75.86 KB

Description:

General purpose chip resistors.
