SA57031-24UK, SA57031-18UK Low Dropout Linear Regulator

SA57031-24UK Description

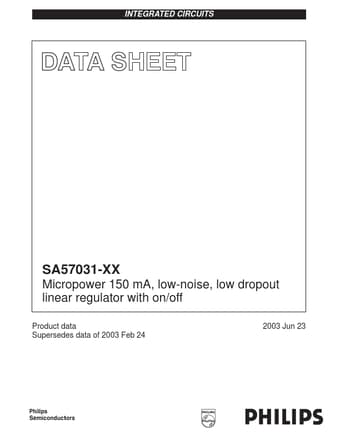

INTEGRATED CIRCUITS SA57031-XX Micropower 150 mA, low-noise, low dropout linear regulator with on/off Product data Supersedes data of 2003 Feb 24 2.
The SA57031 is a 150 mA, fixed output voltage regulator designed to provide very low dropout voltage and low noise in battery powered and portable app.

SA57031-24UK Features

* Many Preset Output Voltages: 1.8 to 5.0 V in 0.1 V increments
* Wafer-level chip scale package (WL-CSP4)
* Extremely low PSRR: 80 dB typical at 1 kHz
* Low Dropout Voltage: 100 mV (typ) @ 50 mA output current
* Very Low Consumption Current: 100 mA typ. (when

SA57031-24UK Applications

* The output voltage is preset to voltages between 1.8 to 5.0 Volts, in 100 mV increments. The SA57031 achieves excellent performance in all specifications such as excellent power supply ripple rejection at low frequency, low supply-current, low dropout voltage, low power consumption, extremely small

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SA57031-24UK, SA57031-18UK. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA57031-24UK, SA57031-18UK
Manufacturer
Philips
File Size
154.30 KB
Datasheet
SA57031-18UK-Philips.pdf
Description
Low Dropout Linear Regulator
Note
This datasheet PDF includes multiple part numbers: SA57031-24UK, SA57031-18UK.
Please refer to the document for exact specifications by model.
