SAA1504T

Safety IC

SAA1504T Features

* Zero voltage start-up

* Discharge and charge overcurrent protection

* Automatic release of current protection at removal of charger or load

* Low current consumption in normal operating mode

* Very low current consumption when battery voltage is lower than 2

SAA1504T General Description

plastic small outline package; 8 leads; body width 3.9 mm GENERAL DESCRIPTION SAA1504T The SAA1504T is manufactured in a BCD Power Logic 70 process and is intended to be used as a protection circuit for single cell Li-ion battery packs. The current and voltage ratings are especially designed for u.

SAA1504T Datasheet (80.64 KB)

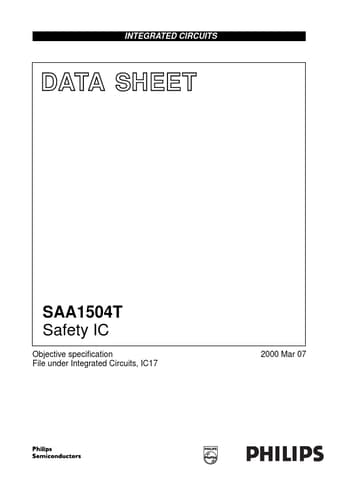

Preview of SAA1504T PDF

Datasheet Details

Part number:

SAA1504T

Manufacturer:

Philips

File Size:

80.64 KB

Description:

Safety ic.
INTEGRATED CIRCUITS DATA SHEET SAA1504T Safety IC Objective specification File under Integrated Circuits, IC17 2000 Mar 07 Philips Semiconductors O.
