TCA770 Datasheet - Philips

TCA770-Philips.pdf

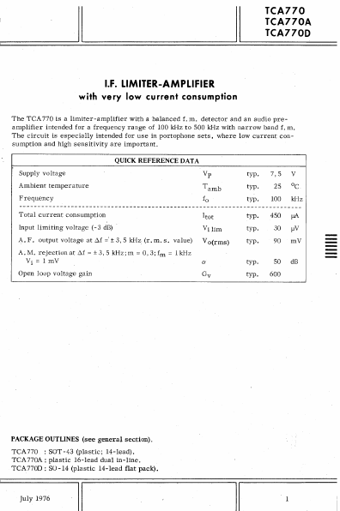

Preview of TCA770 PDF
TCA770 Datasheet Preview Page 2 TCA770 Datasheet Preview Page 3

Datasheet Details

Part number:

TCA770

Manufacturer:

Philips

File Size:

124.54 KB

Description:

I.f. limiter-amplifier.

TCA770, I.F. LIMITER-AMPLIFIER

TCA770 TCA770A II TCA770D I.F.

LIMITER-AMPLIFIER with very low current consumption The TCA 770 is a limiter-amplifier with a balanced f.

m.

detector and an audio preamplifier intended for a frequency range of 100 kHz to 500 kHz with narrow band f.

m.

The circuit is especially intended for use in portophone sets, where low current consumption and high sensitivity are important.

Supply voltage Ambient temperature Frequ.ency QUICK REFERENCE DATA Vp Tamb fo Total current consumption Input limit
