TDA1458D

DUAL OPERATIONAL AMPLIFIER

TDA1458D Features

* No frequency compensation required

* Short-circuit protection

* Large input and output voltage range

* Miniature plastic encapsulation CONNECTION DIAGRAM

* OUTPUT (1) -INPUT (1) +INPUT (1) Vp OUTPUT (2) -INPUT (2) +INPUT (2) 7Z7S106 PACKAGE OUTLINE (see

TDA1458D Datasheet (91.75 KB)

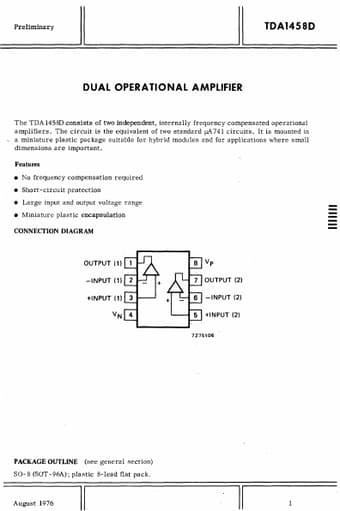

Preview of TDA1458D PDF

Datasheet Details

Part number:

TDA1458D

Manufacturer:

Philips

File Size:

91.75 KB

Description:

Dual operational amplifier.
Preliminary II TDA1458D DUAL OPERATIONAL AMPLIFIER The TDA 1458D consists of two independent, internally frequency compensated operational amplifie.
