TDA2616Q - 2 x 12 W hi-fi audio power amplifiers

This page provides the datasheet information for the TDA2616Q, a member of the TDA2616 2 x 12 W hi-fi audio power amplifiers family.

Datasheet Summary

Description

The TDA2616 and TDA2616Q are dual power amplifiers.

The TDA2616 is supplied in a 9-lead single-in-line (SIL9) plastic power package (SOT131), while the TDA2616Q is supplied in a 9-lead SIL-bent-to-DIL plastic power package (SOT157).

Features

  • Requires very few external components.
  • No switch-on/switch-off clicks.
  • Input mute during switch-on and switch-off.
  • Low offset voltage between output and ground.
  • Excellent gain balance of both amplifiers.
  • Hi-fi in accordance with IEC 268 and DIN 45500.
  • Short-circuit proof and thermal protected.
  • Mute possibility. QUICK.

📥 Download Datasheet

Datasheet preview – TDA2616Q

Datasheet Details

Part number TDA2616Q
Manufacturer Philips
File Size 86.31 KB
Description 2 x 12 W hi-fi audio power amplifiers
Datasheet download datasheet TDA2616Q Datasheet
Additional preview pages of the TDA2616Q datasheet.

📁 Similar Datasheet

  • TDA2616 - 2 x 12 W hi-fi audio power amplifiers (NXP)
  • TDA2611 - DUAL EQUALIZER AMPLIFIER (UTC)
  • TDA2611A - 5W audio power amplifier (NXP)
  • TDA2613 - 6 W hi-fi audio power amplifier (NXP)
  • TDA2614 - 6 W hi-fi audio power amplifier (NXP)
  • TDA2615 - 2 x 6 W hi-fi audio power amplifier (NXP)
  • TDA2640 - Switch Mode Power Supply (ETC)
  • TDA2651 - TDA2651 (ETC)
  • TDA2652 - TDA2652 (ETC)
  • TDA2653A - Vertical deflection circuit (NXP)
Other Datasheets by Philips
  • TDA2655B - Vertical Deflection Circuit
  • TDA2520 - Color Demodulator Combination
  • TDA2522 - COLOR Demodulation Combinations
  • TDA2522Q - COLOR Demodulation Combinations
  • TDA2578A - Synchronization Circuit
  • TDA2700 - Oscillator
  • TDA2791 - TV Sound Combination
  • TDA2795 - TV Stereo/Dual Sound Identification Decoder

Full PDF Text Transcription

Click to expand full text

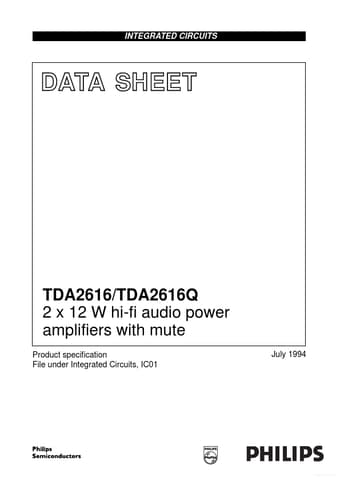

INTEGRATED CIRCUITS DATA SHEET TDA2616/TDA2616Q 2 x 12 W hi-fi audio power amplifiers with mute Product specification File under Integrated Circuits, IC01 July 1994 Free Datasheet http://www.Datasheet4U.com Philips Semiconductors Product specification 2 x 12 W hi-fi audio power amplifiers with mute FEATURES • Requires very few external components • No switch-on/switch-off clicks • Input mute during switch-on and switch-off • Low offset voltage between output and ground • Excellent gain balance of both amplifiers • Hi-fi in accordance with IEC 268 and DIN 45500 • Short-circuit proof and thermal protected • Mute possibility.
