UDA1321 - Universal Serial Bus USB Digital-to-Analog Converter DAC

Philips

📥 Download Datasheet

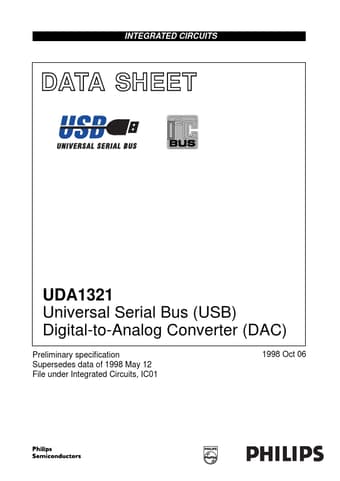

UDA1321 Datasheet Preview — Preview of UDA1321 PDF

Datasheet Details

Part number	UDA1321
Manufacturer	Philips
File Size	280.40 KB
Description	Universal Serial Bus USB Digital-to-Analog Converter DAC
Datasheet	UDA1321_Philips.pdf

UDA1321 Product details

Description

The UDA1321 is a stereo CMOS digital-to-analog bitstream converter designed for USB-compliant audio playback devices and multimedia audio applications.The UDA1321 is an adaptive asynchronous sink USB audio device with a continuous sampling frequency (fs) range from 5 to 55 kHz.

Features

General.
Universal Serial Bus (USB) stereo Digital-to-Analog Converter (DAC) system with adaptive (5 to 55 kHz) 20-bits digital-to-analog conversion and filtering.
USB-compliant audio and Human Interface Device (HID).
Supports 12 Mbits/s full-speed serial data transmission.
Supports multiple audio data formats (8, 16 and 24 bits).
Supports headphone and line output.
Fully automatic ‘Plug-and-Play’ operation.
High linearity.
