BAY80 Datasheet - Philipss

General purpose diode

BAY80 Features

* Hermetically sealed leaded glass SOD27 (DO-35) package

* High switching speed: max. 50 ns

* General application

* Continuous reverse voltage: max. 120 V

* Repetitive peak reverse voltage: max. 150 V

* Repetitive peak forward current: max. 625 mA. APP

BAY80 General Description

The BAY80 is a switching diode fabricated in planar technology, and encapsulated in the hermetically sealed leaded glass SOD27 (DO-35) package. a MAM246 The diode is type branded. Fig.1 Simplified outline (SOD27; DO-35) and symbol. LIMITING VALUES In accordance with the Absolute Maximum Rating .

BAY80 Datasheet (37.26 KB)

BAY80 Datasheet Preview — Preview of BAY80 PDF

Datasheet Details

Part number:

BAY80

Manufacturer:

Philipss

File Size:

37.26 KB

Description:

General purpose diode.

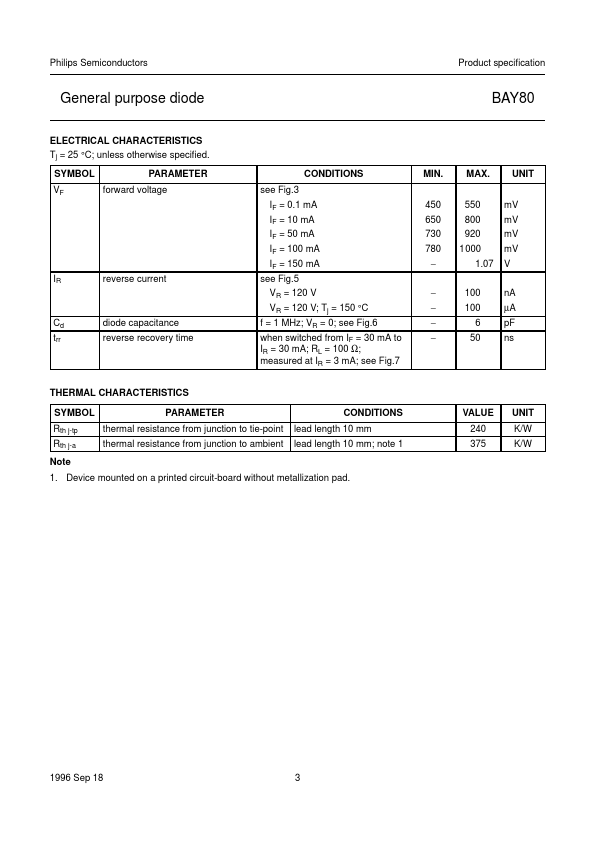

DISCRETE SEMICONDUCTORS DATA SHEET M3D176 BAY80 General purpose diode Product speciﬁcation Supersedes data of April 1996 1996 Sep 18 Philips Semic.
