BB134 Datasheet - Philipss

UHF variable capacitance diode

BB134 Features

* Excellent linearity

* Excellent matching to 0.5% DMA

* Very small plastic SMD package

* C28: 1.9 pF; ratio: 10

* Low series resistance. MAM130 BB134 handbook, 4 columns k a APPLICATIONS

* Electronic tuning in UHF television tuners

* VCO.

BB134 General Description

The BB134 is a variable capacitance diode, fabricated in planar technology, and encapsulated in the SOD323 very small plastic SMD package. The excellent matching performance is achieved by a direct matching assembly procedure. The unmatched type, BB135 has the same specification. ELECTRICAL CHARACTE.

BB134 Datasheet (54.04 KB)

BB134 Datasheet Preview — Preview of BB134 PDF

Datasheet Details

Part number:

BB134

Manufacturer:

Philipss

File Size:

54.04 KB

Description:

Uhf variable capacitance diode.

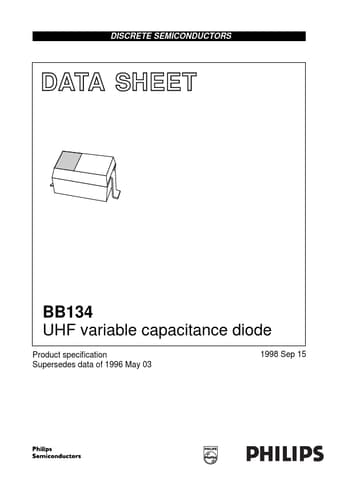

DISCRETE SEMICONDUCTORS DATA SHEET alfpage M3D049 BB134 UHF variable capacitance diode Product speciﬁcation Supersedes data of 1996 May 03 1998 Sep.
