BC141-16 - NPN medium power transistors

Description

NPN medium power transistor in a TO-39 metal package.

PNP complements: BC160 and BC161.

Fig.1 Simplified outline (TO-39) and symbol.

Features

  • High current (max. 1 A).
  • Low voltage (max. 60 V).

📥 Download Datasheet

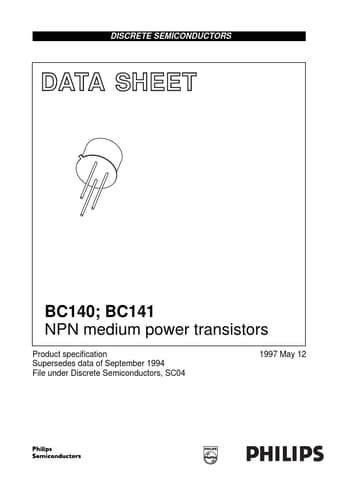

Datasheet preview – BC141-16
