PC415 - 10 Amp Subminiature PCB Power Relay

Datasheet Summary

Features

  •  10 Amp Continuous Contact Capacity.
  •  1 Form A, 1 Form B and 1 Form C Contact Forms.
  •  Most Popular Package and Footprint.
  •  Class “B” Insulation Standard.
  •  Class “F” Insulation Available.
  •  Popular “Sugar Cube” Footprint.
  •  Sealed, Immersion Cleanable.
  •  Lead Free and RoHS Compliant.
  •  Production Line Fully Automated E86876 All Forms, All Contacts 10 Amps @ 120 VAC & 28 VDC 7 Amps @ 240 VAC 5 Amps @ 277 VAC 20 Amps @ 14 VDC 10 Amps @ 120 VAC & 28 VDC 7 A.

📥 Download Datasheet

Datasheet preview – PC415

Datasheet Details

Part number PC415
Manufacturer Picker
File Size 262.36 KB
Description 10 Amp Subminiature PCB Power Relay
Datasheet download datasheet PC415 Datasheet
Additional preview pages of the PC415 datasheet.

📁 Similar Datasheet

  • PC410 - Compact/ Surface Mount Ultra-high Speed Response OPIC Photocoupler (Sharp Electrionic Components)
  • PC410L0NIP - High CMR OPIC Photocoupler (Sharp Electrionic)
  • PC410L0NIP0F - OPIC Photocoupler (Sharp)
  • PC412S - Photocoupler (Sharp)
  • PC417 - Compact/ Surface Mount Ultra-high Speed Response OPIC Photocoupler (Sharp Electrionic Components)
  • PC419 - Compact Surface Mounted/ Bi-directional Linear Output Type Photocoupler (Sharp Electrionic Components)
  • PC419K - Compact Surface Mounted/ Bi-directional Linear Output Type Photocoupler (Sharp Electrionic Components)
  • PC400 - Compact/ Surface Mount Type OPIC Photocoupler (Sharp Electrionic Components)
  • pc4001l - LCD_Module (POWERTIP)
  • PC4002 - OUTLINE DIMENSION & BLOCK DIAGRAM (Powertip Technology)
Other Datasheets by Picker
  • PC457 - Ultra Slim Inline Relay

Full PDF Text Transcription

Click to expand full text

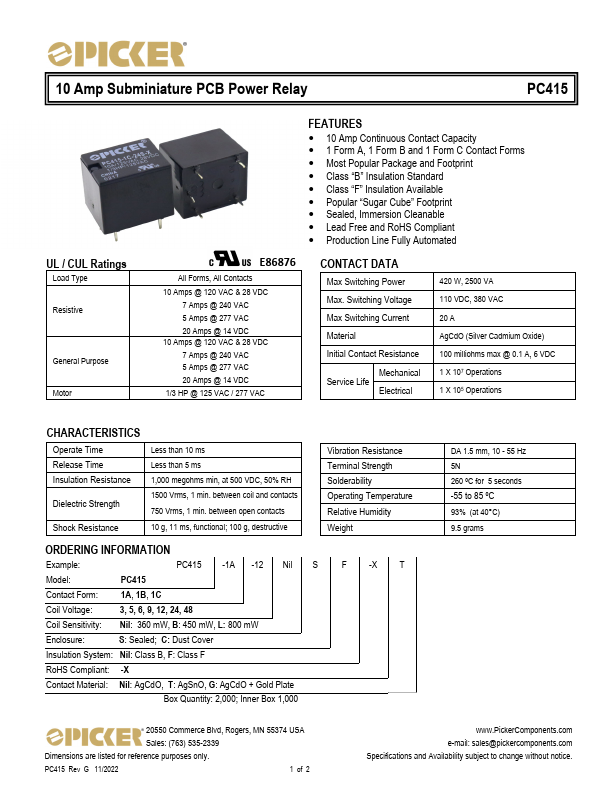

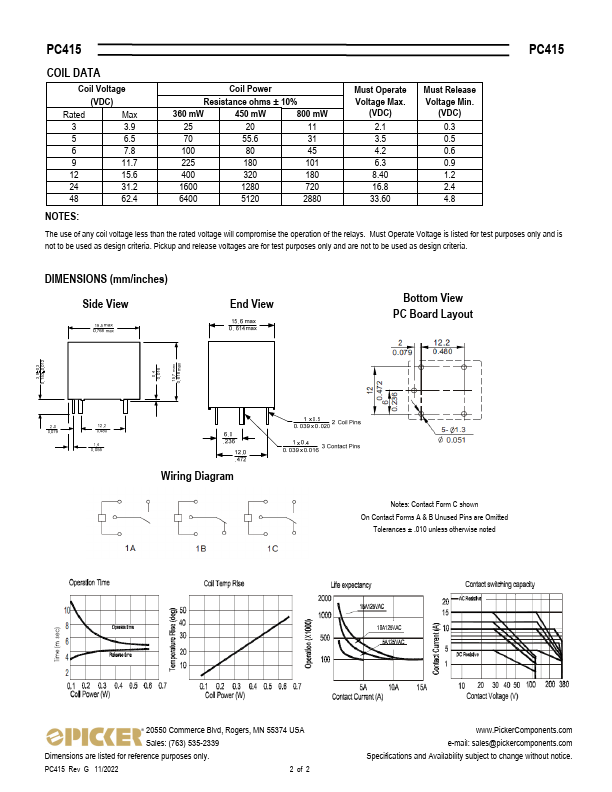

10 Amp Subminiature PCB Power Relay PC415 UL / CUL Ratings Load Type Resistive General Purpose Motor FEATURES  10 Amp Continuous Contact Capacity  1 Form A, 1 Form B and 1 Form C Contact Forms  Most Popular Package and Footprint  Class “B” Insulation Standard  Class “F” Insulation Available  Popular “Sugar Cube” Footprint  Sealed, Immersion Cleanable  Lead Free and RoHS Compliant  Production Line Fully Automated E86876 All Forms, All Contacts 10 Amps @ 120 VAC & 28 VDC 7 Amps @ 240 VAC 5 Amps @ 277 VAC 20 Amps @ 14 VDC 10 Amps @ 120 VAC & 28 VDC 7 Amps @ 240 VAC 5 Amps @ 277 VAC 20 Amps @ 14 VDC 1/3 HP @ 125 VAC / 277 VAC CONTACT DATA Max Switching Power Max.
