PC521 Datasheet, Relay, Picker

PC521 Features

  • Relay
  •  20 A at 125 VAC and 16 A at 277 VAC Contact Rating
  •  1 HP at 125 VAC and 250 VAC
  •  TV8 Rated at 125 VAC
  •  Class “B” Insulation Standard

PDF File Details

Part number:

PC521

Manufacturer:

Picker

File Size:

197.33kb

Download:

📄 Datasheet

Description:

Pcb relay.

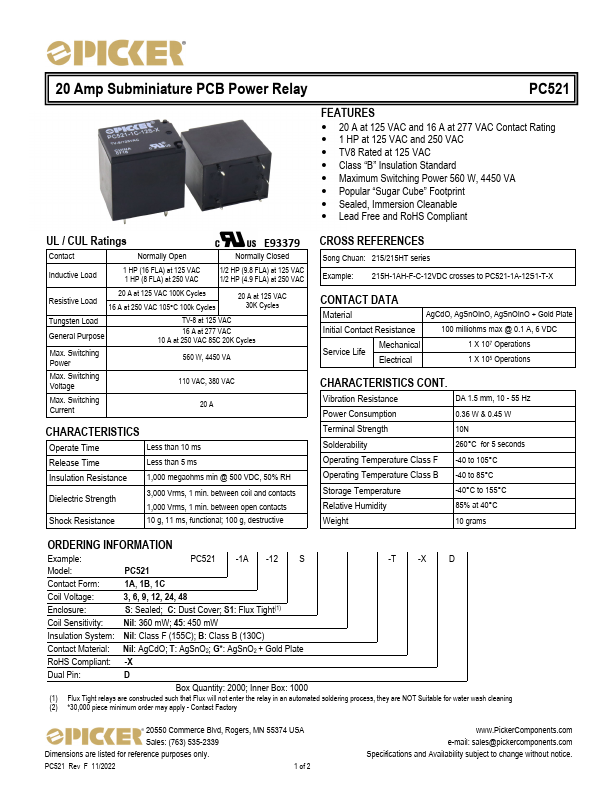

Datasheet Preview: PC521 📥 Download PDF (197.33kb)

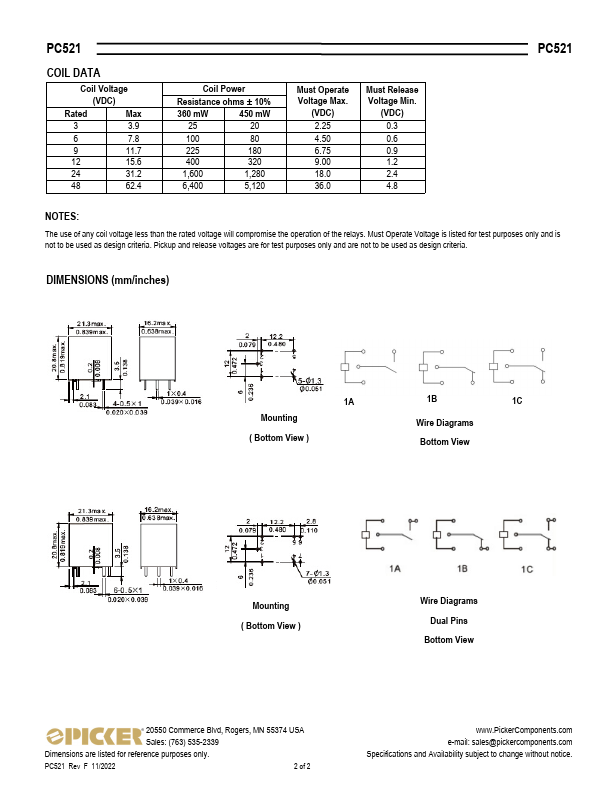

Page 2 of PC521

TAGS

PC521
PCB
Relay
Picker
