SC782 - Micro ISO Automotive Relay Socket

Picker

SC782 Datasheet Preview — Preview of SC782 PDF

Datasheet Details

Part number	SC782
Manufacturer	Picker
File Size	386.59 KB
Description	Micro ISO Automotive Relay Socket
Datasheet	SC782-Picker.pdf

SC782 Product details

Description

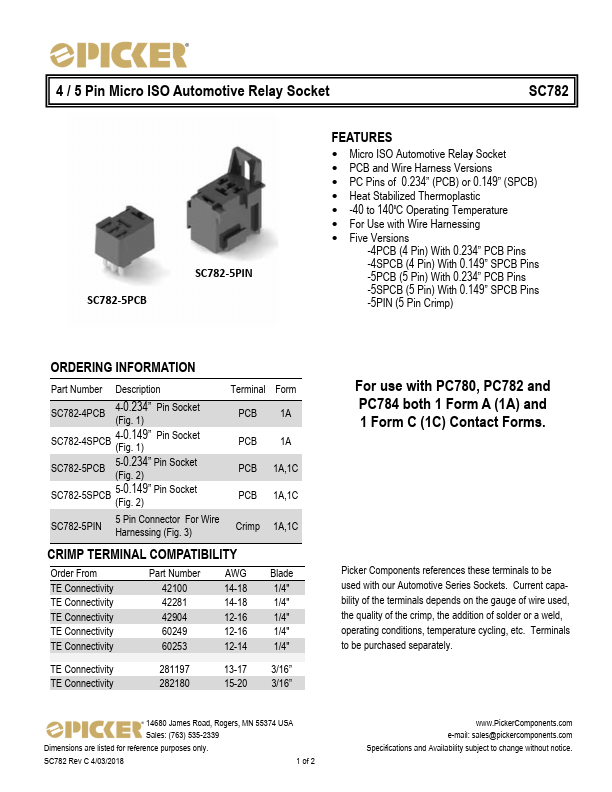

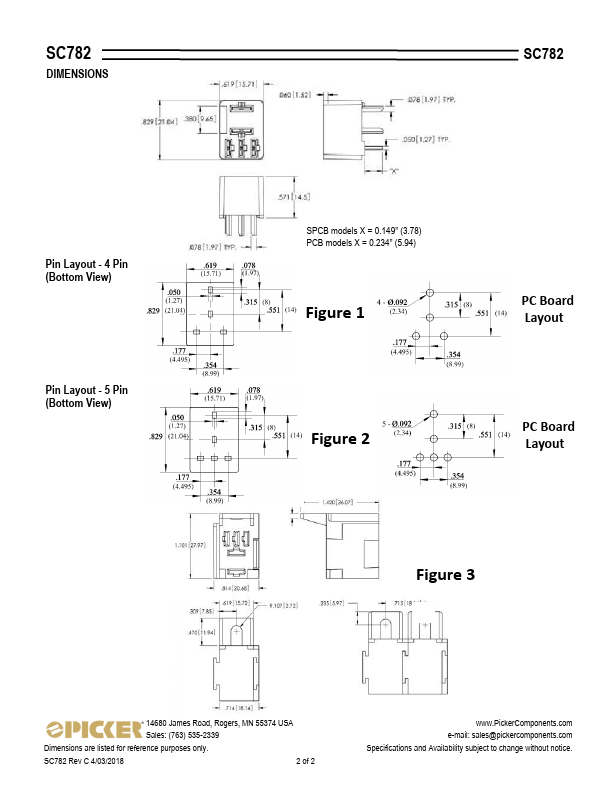

SC782-4PCB 4-0.234” Pin Socket (Fig.1) SC782-4SPCB 4-0.149” (Fig.1) Pin Socket SC782-5PCB 5-0.234” Pin Socket (Fig.2) SC782-5SPCB 5-0.149” (Fig.2) Pin Socket SC782-5PIN 5 Pin Connector For Wire Harnessing (Fig.3) Terminal Form PCB 1A PCB 1A PCB 1A,1C PCB 1A,1C Crimp 1A,1C CRIMP TERMINAL COMPATIBILITY Order From TE Connectivity TE Connectivity TE Connectivity TE Connectivity TE Connectivity Part Number 42100 42281 42904 60249 60253 AWG 14-18 14-18 12-16 12-16 12-14 Blade 1

Features

 Micro ISO Automotive Relay Socket.
 PCB and Wire Harness Versions.
 PC Pins of 0.234” (PCB) or 0.149” (SPCB).
 Heat Stabilized Thermoplastic.
 -40 to 140ºC Operating Temperature.
 For Use with Wire Harnessing.
 Five Versions -4PCB (4 Pin) With 0.234” PCB Pins -4SPCB (4 Pin) With 0.149” SPCB Pins -5PCB (5 Pin) With 0.234” PCB Pins -5SPCB (5 Pin) With 0.149” SPCB Pins -5PIN (5 Pin Crimp).
