PI2061

High Side High Voltage Load Disconnect Switch Controller IC

PI2061 Features

* Programmable latching over-current detection

* Fast 120ns disconnect response to a load short

* Fast disable via EN pin, typically 200ns.

* 4A gate discharge current

* Internal charge pump

* Fault status indication Applications

* Telecom System, ≤80V operation & 100V/10

PI2061 General Description

The PI2061 is a high-speed electronic circuit breaker controller IC designed for use with N-channel MOSFETs in high side load disconnect switch solutions for medium voltage applications. The PI2061 Cool-Switch® controller enables an extremely low power loss solution with fast dynamic response to an .

PI2061 Datasheet (1.01 MB)

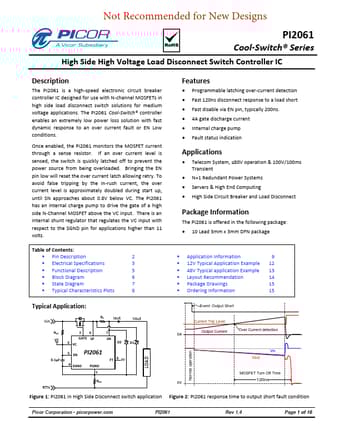

PI2061 Datasheet Preview — Preview of PI2061 PDF

Datasheet Details

Part number:

PI2061

Manufacturer:

Picor

File Size:

1.01 MB

Description:

High side high voltage load disconnect switch controller ic.
